| 精度 |
測定部和螺紋部的偏差 : 型號RA○○○-1 → 0.01mm以下 測定部和螺紋部的偏差 : 型號RA○○○-2 → 0.015mm以下 測定部和螺紋部的偏差 : 型號RA○○○-3 → 0.02mm以下 測定部(a尺寸)精度 : ±0.005mm以下 |
| 材質 | 不銹鋼(SUS303) |
單位:mm

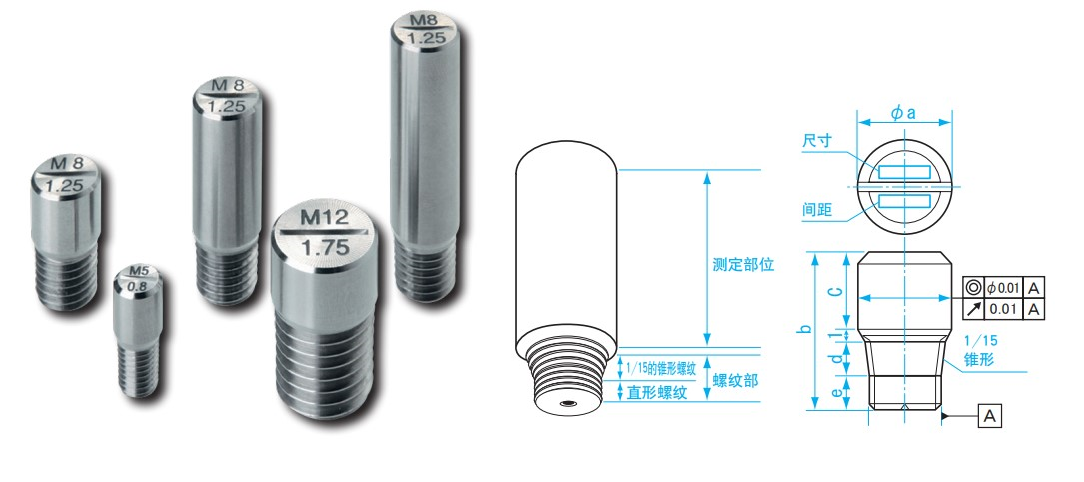

| 型號 | 尺寸 | a | b | c | d | e | |
| RA125-1 | M 1 x P 0.25 | 2 | 8.0 | 4.5 | 1.50 | 1.00 | |
| RA125-2 | 13.5 | 10.0 | |||||
| RA125-3 | 23.5 | 20.0 | |||||
| RA204-1 | M 2 x P 0.4 | 3 | 10.0 | 4.5 | 2.50 | 2.00 | |
| RA204-2 | 25.5 | 20.0 | |||||
| RA204-3 | 35.5 | 30.0 | |||||
| RA305-1 | M 3 x P 0.5 | 4 | 12.0 | 5.0 | 3.50 | 2.50 | |
| RA305-2 | 27.0 | 20.0 | |||||
| RA305-3 | 37.0 | 30.0 | |||||
| RA407-1 | M 4 x P 0.7 | 5 | 14.0 | 6.0 | 3.50 | 3.50 | |
| RA407-2 | 28.0 | 20.0 | |||||
| RA407-3 | 38.0 | 30.0 | |||||
| RA508-1 | M 5 x P 0.8 | 6 | 16.0 | 7.0 | 4.0 | 4.00 | |
| RA508-2 | 29.0 | 20.0 | |||||
| RA508-3 | 39.0 | 30.0 | |||||
| RA610-1 | M 6 x P 1.0 | 7 | 18.0 | 8.0 | 4.0 | 5.00 | |
| RA610-2 | 30.0 | 20.0 | |||||
| RA610-3 | 40.0 | 30.0 | |||||
| RA8125-1 | M 8 x P 1.25 | 9 | 19.0 | 8.5 | 4.50 | 5.00 | |
| RA8125-2 | 30.5 | 20.0 | |||||
| RA8125-3 | 40.0 | 30.0 | |||||
| RA1015-1 | M 10 x P 1.5 | 11 | 21.0 | 8.5 | 5.50 | 6.00 | |
| RA1015-2 | 32.5 | 20.0 | |||||
| RA1015-3 | 42.5 | 30.0 | |||||
| RA1215-1 | M 12 x P 1.5 | 13 | 23.0 | 8.5 | 6.50 | 7.00 | |
| RA1215-2 | 34.5 | 20.0 | |||||
| RA1215-3 | 44.5 | 30.0 | |||||
| RA12175-1 | M 12 x P 1.75 | 13 | 23.0 | 8.5 | 6.50 | 7.00 | |
| RA12175-2 | 34.5 | 20.0 | |||||
| RA12175-3 | 44.5 | 30.0 | |||||
| RA1415-1 | M 14 x P 1.5 | 15 | 23.5 | 8.5 | 6.50 | 7.50 | |
| RA1415-2 | 35.0 | 20.0 | |||||
| RA1415-3 | 45.0 | 30.0 | |||||
| RA1615-1 | M 16 x P 1.5 | 17 | 23.5 | 8.5 | 6.50 | 7.50 | |
| RA1615-2 | 35.0 | 20.0 | |||||
| RA1615-3 | 45.0 | 30.0 | |||||
| RA1815-1 | M 18 x P 1.5 | 19 | 24.5 | 8.5 | 7.00 | 8.00 | |
| RA1815-2 | 36.0 | 20.0 | |||||
| RA1815-3 | 46.0 | 30.0 | |||||
