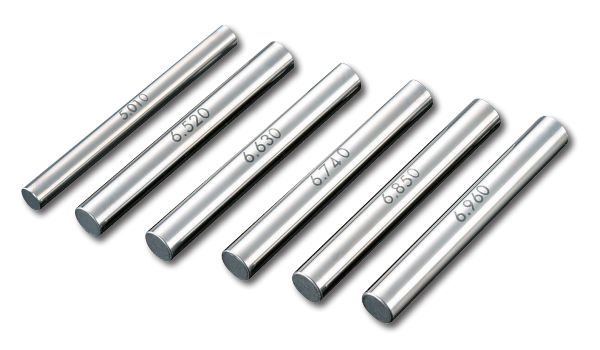

SA高精度型(間隔0.001mm)
檔案下載

規格(mm) 尺寸(mm) 長度(mm) 徑精度(µm) 真圓度(µm) 圓柱度(µm) 硬度(HV)
0.100~0.999 0.001間隔 40 ±0.3 0.3 0.6 720以上
1.000~2.699 50
2.700~7.010 650以上
7.011~10.00 ±0.5 0.5 1.0



SK SA系列高精度針規(單支可販售/間隔0.001mm/每組各14支)
型號 尺寸(mm) 型號 尺寸(mm) 型號 尺寸(mm)
SA-03 0.297~0.310 SA-26 2.597~2.610 SA-49 4.897~4.910
SA-04 0.397~0.10 SA-27 2.697~2.710 SA-50 4.997~5.010
SA-05 0.497~0.510 SA-28 2.797~2.810 SA-51 5.097~5.110
SA-06 0.597~0.610 SA-29 2.897~2.910 SA-52 5.197~5.210
SA-07 0.697~0.710 SA-30 2.997~3.010 SA-53 5.297~5.310
SA-08 0.797~0.810 SA-31 3.097~3.110 SA-54 5.397~5.410
SA-09 0.897~0.910 SA-32 3.197~3.210 SA-55 5.497~5.510
SA-10 0.997~1.010 SA-33 3.297~3.310 SA-56 5.597~5.610
SA-11 1.097~1.110 SA-34 3.397~3.410 SA-57 5.697~5.710
SA-12 1.197~1.210 SA-35 3.497~3.510 SA-58 5.797~5.810
SA-13 1.297~1.310 SA-36 3.597~3.610 SA-59 5.897~5.910
SA-14 1.397~1.410 SA-37 3.697~3.710 SA-60 5.997~6.010
SA-15 1.497~1.510 SA-38 3.797~3.810 SA-61 6.097~6.110
SA-16 1.597~1.610 SA-39 3.897~3.910 SA-62 6.197~6.210
SA-17 1.697~1.710 SA-40 3.997~4.010 SA-63 6.297~6.310
SA-18 1.797~1.810 SA-41 4.097~4.110 SA-64 6.397~6.410
SA-19 1.897~1.910 SA-42 4.197~4.210 SA-65 6.497~6.510
SA-20 1.997~2.010 SA-43 4.297~4.310 SA-66 6.597~6.610
SA-21 2.097~2.110 SA-44 4.397~4.410 SA-67 6.697~6.710
SA-22 2.197~2.210 SA-45 4.497~4.510 SA-68 6.797~6.810
SA-23 2.297~2.310 SA-464 4.597~4.610 SA-69 6.897~6.910
SA-24 2.397~2.410 SA-47 4.697~4.710 SA-70 6.997~7.010
SA-25 2.497~2.510 SA-48 4.797~4.810 -- --
